Daay Power Sweep

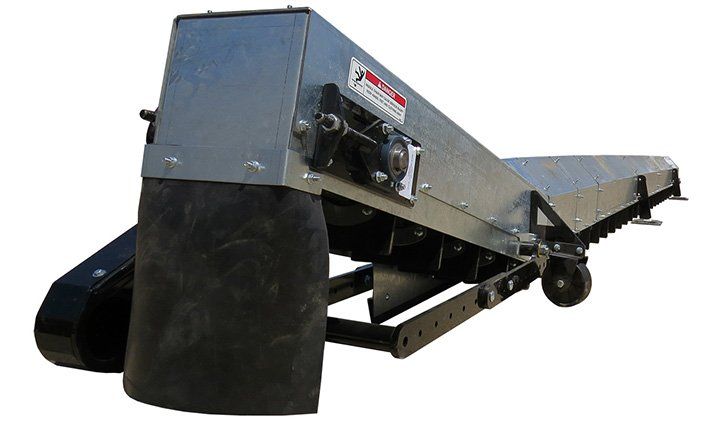

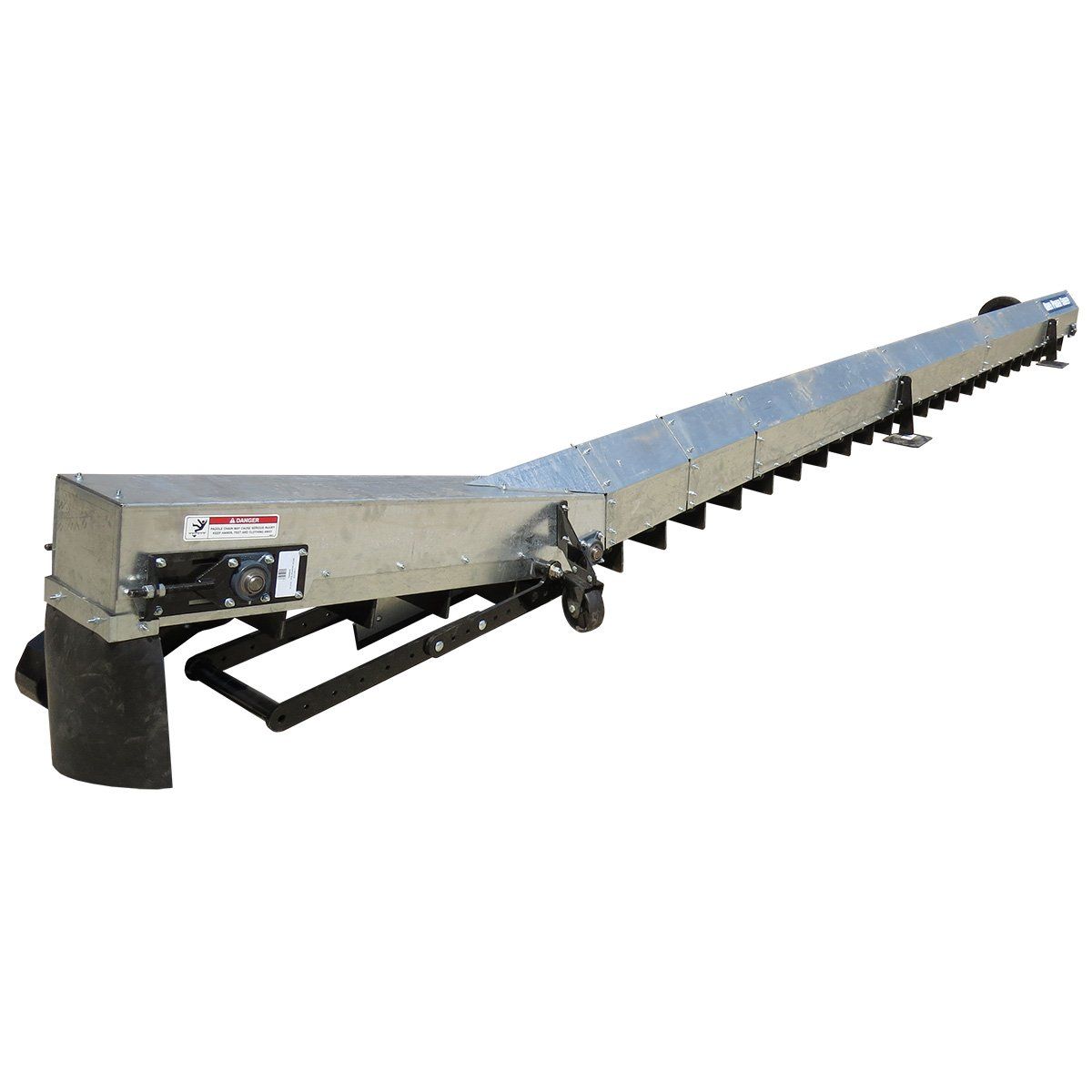

NEW MODELS ARE NOW GALVANIZED!
Simply replace your traditional auger arm with a Daay Power Sweep and get up to DOUBLE THE BPH UNLOAD SPEEDS!


Sweeps have a maximum capacity of 5,500 bushels per hour, which equates to 5 ½ semi loads in an hour. Most augers can only do 2 to 2 ½ loads per hour.



  • Manufactured for 15' to 66' grain bins.
  • Up to 5,500 bushel per hour at 350 rpm tightener shaft speed.
  • Single or multiple pass.
  • Expand on the already significant added features of a paddle sweep with the Edge Buster !



Request a Quote Power Sweep Literature

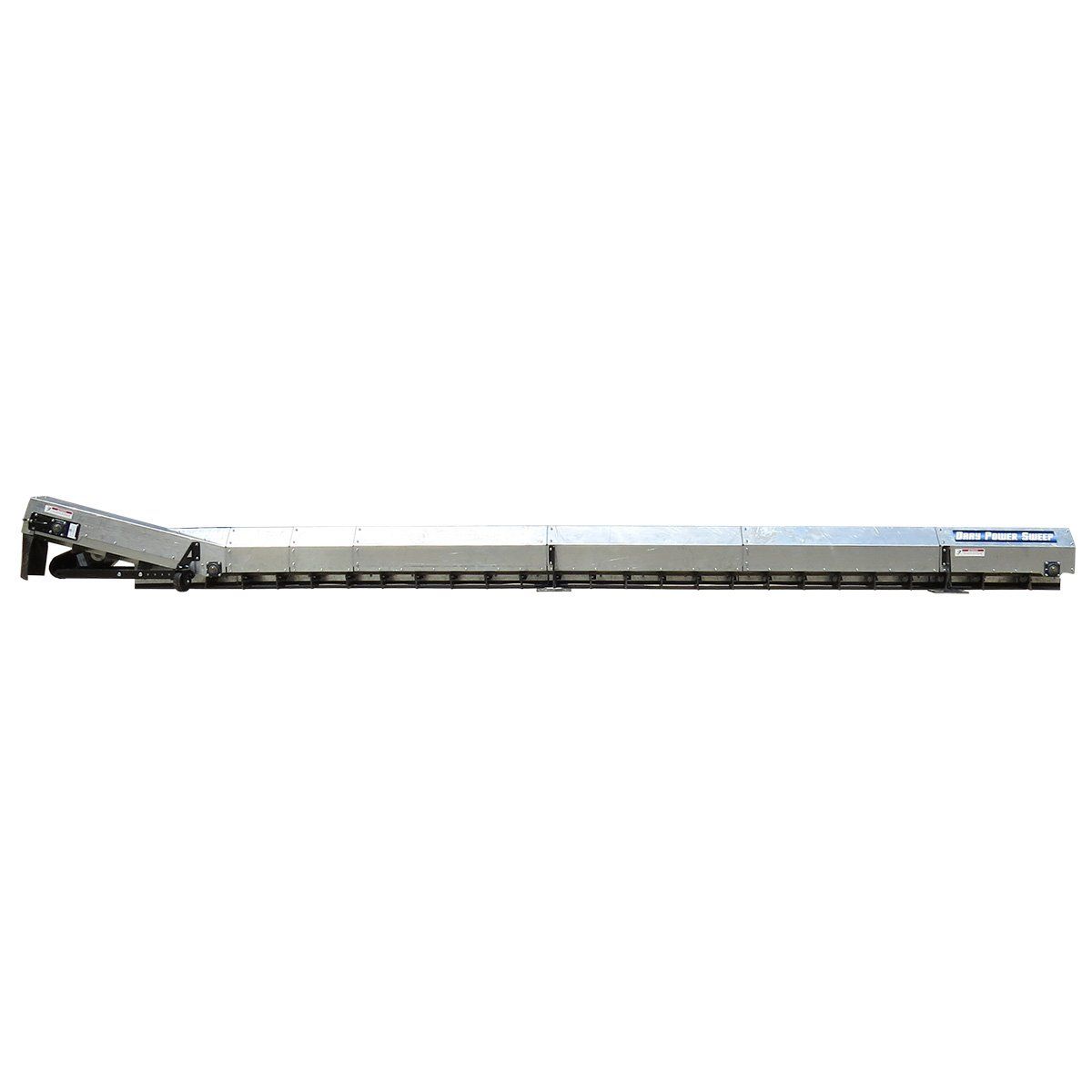

Gently & Evenly Move Grain To Bin Sump With A Single Pass

This non jack system allows for minimal entry into a grain bin during the unloading process creating a safer environment on the farm.
  • Eliminates the labor intensive process of sweeping the remaining 1-2” of grain that an auger based sweep would typically leave behind.
  • There is very minimal entry needed, if any, into the bin while the sweep is in operation.
  • Paddle sweeps are much safer than auger-based systems.

Note: These values can fluctuate greatly depending on the varying conditions present, including but not limited to; moisture content, grain commodity type and flowability, amount of foreign matter present, and compaction rate. These all play a part in the performance of the paddle sweep. Paddle sweep capacity may also vary as the angle of the sloping grain varies. For optimal performance, dry flowable grain is recommended. The paddle sweep is not intended for use in high moisture grain storage applications or suitable for non-grain commodities including fertilizer, lime, etc. Also, grain that may have gone out of condition due to moisture or insect activity and has become hard or caked will result in diminished capacity.

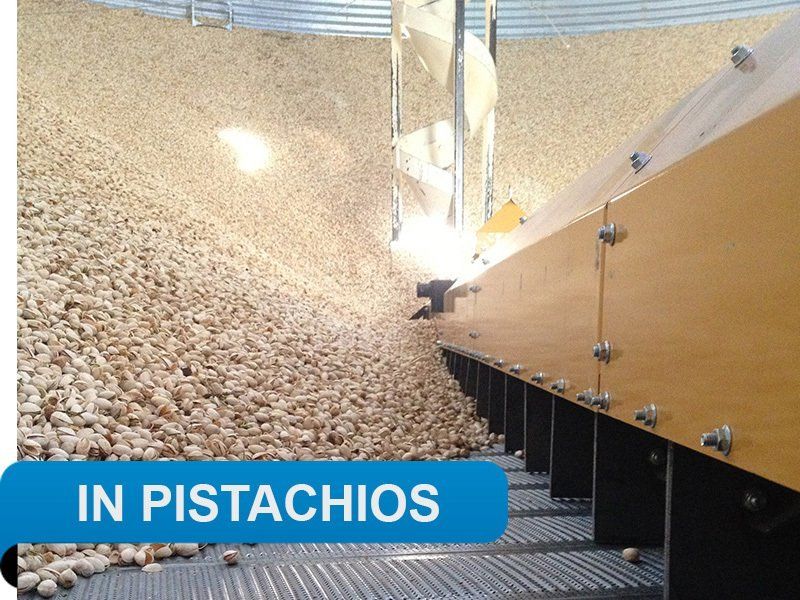

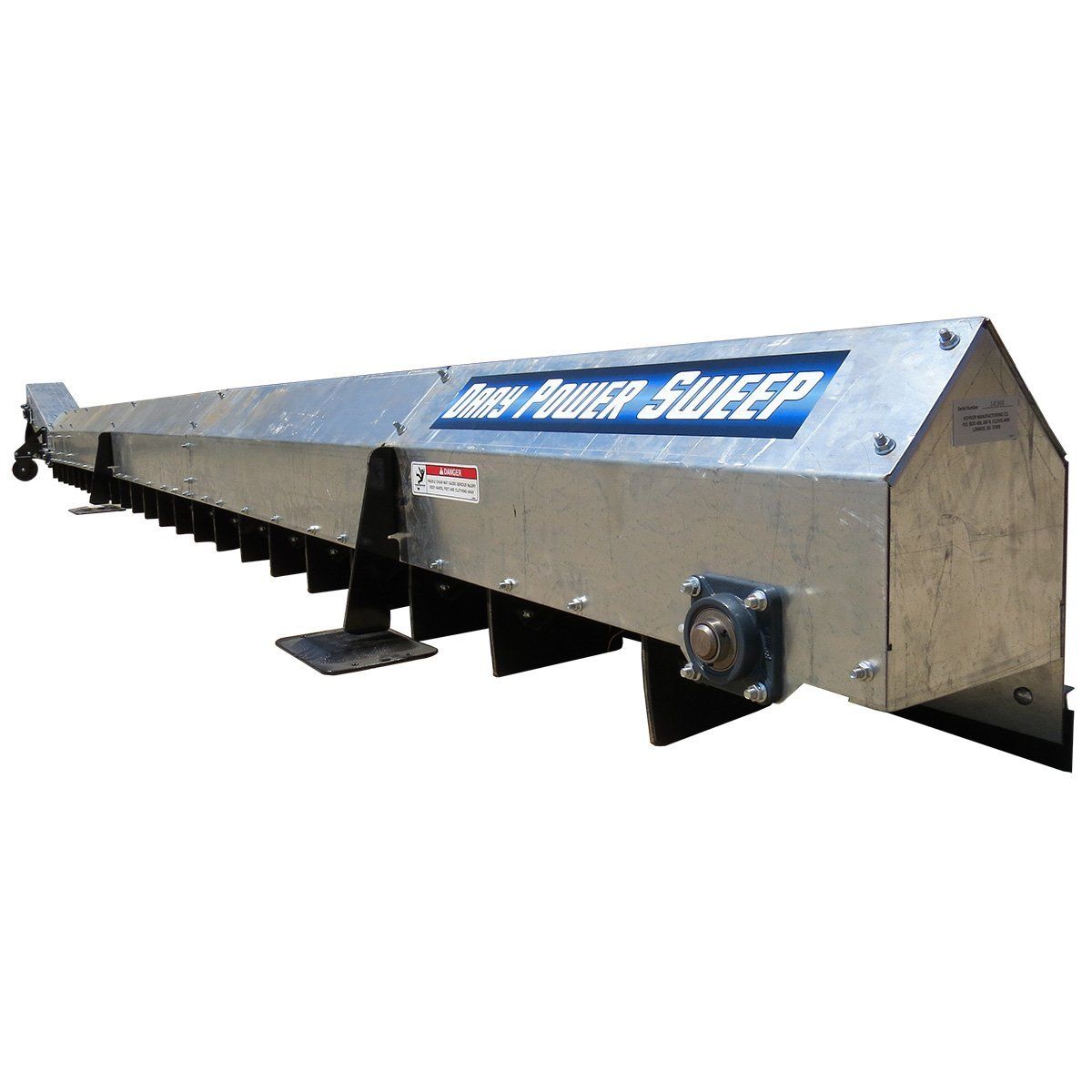

Strong ten guage housing material

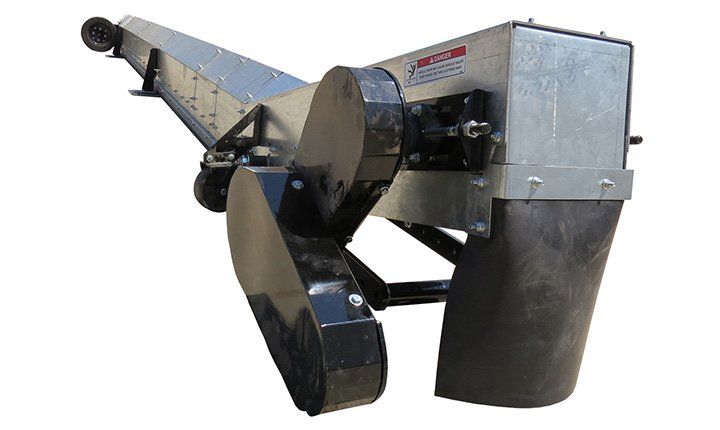

Powered by the power gearbox so there is no 2nd motor or power cords. The drive is driven by the paddle chain, eliminating the need for another power source.

It has a flexible pivot joint and stabilizer arms to allow the sweep to move independently from the gearbox. This allows the sweep to adjust to variations in the floor height.

The adjustable stabilizer arms accommodate variations in the bin size and out of roundness.

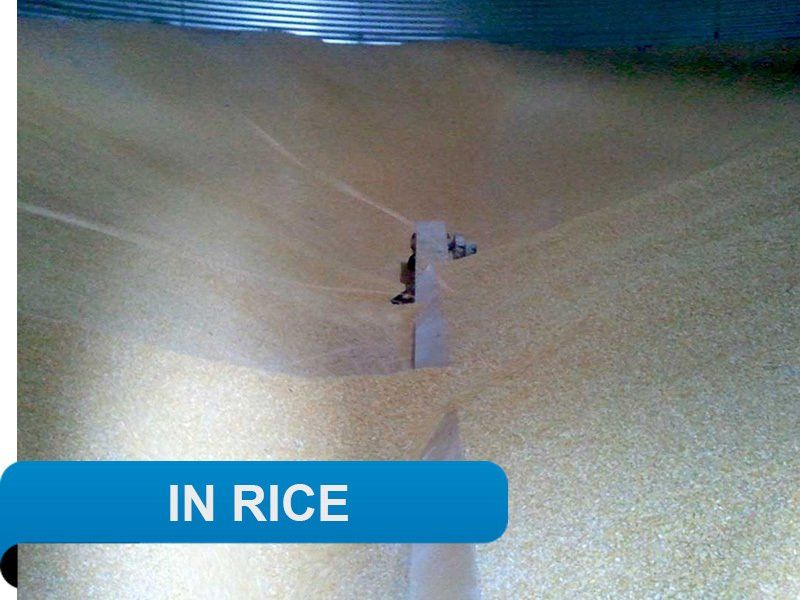

Safely unload a grain bin
The flexible pivot joint transfers the power from the gear box to the sweep and gives you the flexibility to slow down or speed up the speed of the paddle chain to better match the Bushels per hour of the reclaim system. This will prevent overloading of the sweep and reclaim due to excessive capacity.

The inclined pivot section allows the grain to flow the sump, so not matter if your sump is offset of center of your bin, the sweep will be able to achieve max capacity at any position in the bin.

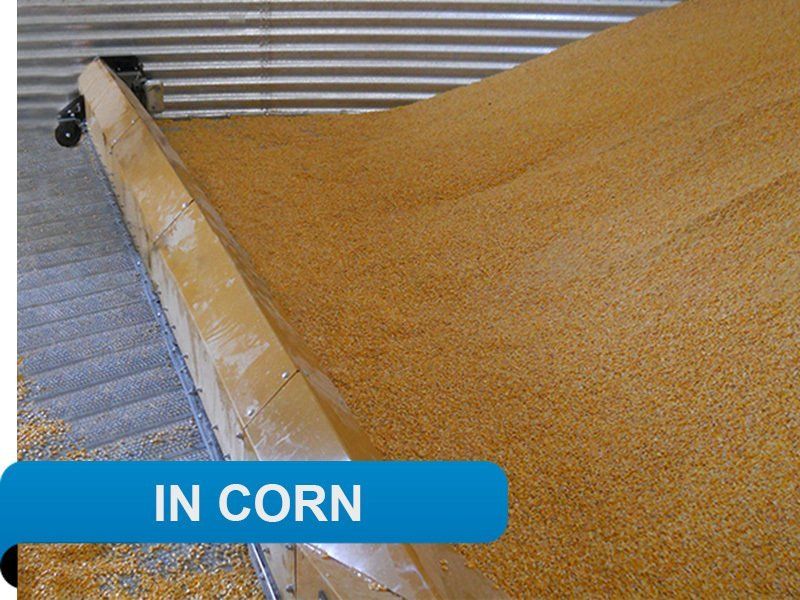

Designed to be fully submersed in grain
Eliminates the labor intensive process of sweeping the remaining 1-2” of grain that an auger based sweep would typically leave behind.

The rubber drag helps clean the floor for minimal sweeping.

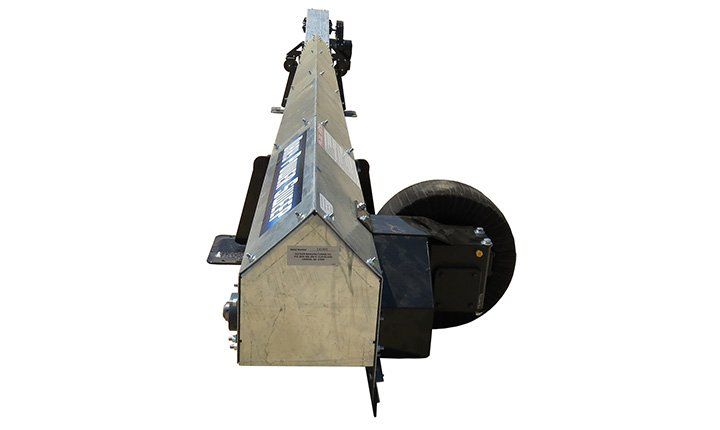

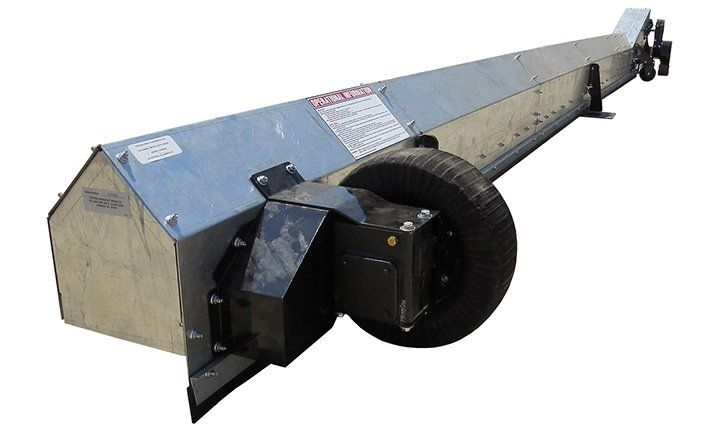

With a single, segmented 5"x8"x15" tire, the drive wheel is closer to the center of gravity, so the weight of the sweep is transferred to the tire better eliminating the need for a weight bracket.
MAX EAVE HEIGHT ON GRAIN BINS
We want to make sure your Daay Power Sweep is in a bin environment that will protect it. Please contact us for additional information or if you have questions pertaining to the following specifications.

Daay Power Sweep
In 15' to 48' Corrugated Farm Bins, the max eave height is 40'.
In 54' and 60' Corrugated Farm Bins, the max eave height is 35'.
In 66' Corrugated Farm Bins, the max eave height is 30'.

Daay Power Sweep: Deep Burial Model
In 48' and 54' Corrugated Farm Bins, the max eave height is 70'.
In 60' and 66' Corrugated Farm Bins, the max eave height is 60'.New Paragraph
