EXTRAC

Extrac dual paddle sweep grain bin unload
High capacity, minimal entry unload with dual paddle sweeps. The EXTRAC features position sensing logic allowing two sweeps to more effectively clean the grain bin.
  • Manufactured for 60' to 105' grain bins.
  • 5,500 to 11,000 bushel per hour maximum capacity.
Request a Quote EXTRAC Brochure

"...sweeps reduce labor and time"

“The dual sweep performed great! I was told the sweep would take grain at 11,000 bushel an hour and it did! The sweeps are very good at cleaning the floor. A light broom will finish once the dual sweeps have made a full revolution around the bin. The old bin sweep we had there was 2-3 inches of grain to scoop.

 The dual sweeps reduce labor and time. The dual sweep cleans our 105 foot bin in 10 hours before we had 3 to 4 days. No need to be in a bin with the dual sweeps. They take care of themselves!”

Chad Shultz, AgFirst Farmers Cooperative, Aurora, SD

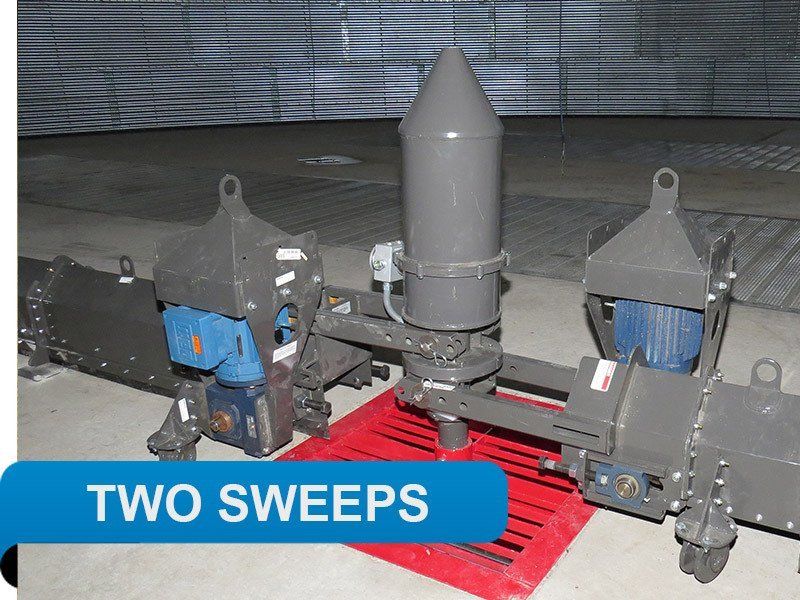

Two sweeps clean grain bin floor
Provides the most efficient unloading
because at least one of the sweeps is
always running at full capacity.

Independently rotating sweeps will momentarily shut down and automatically re-start if either falls behind or gets ahead of the other sweep.  The independent rotation eliminates high stress at the center pivot.

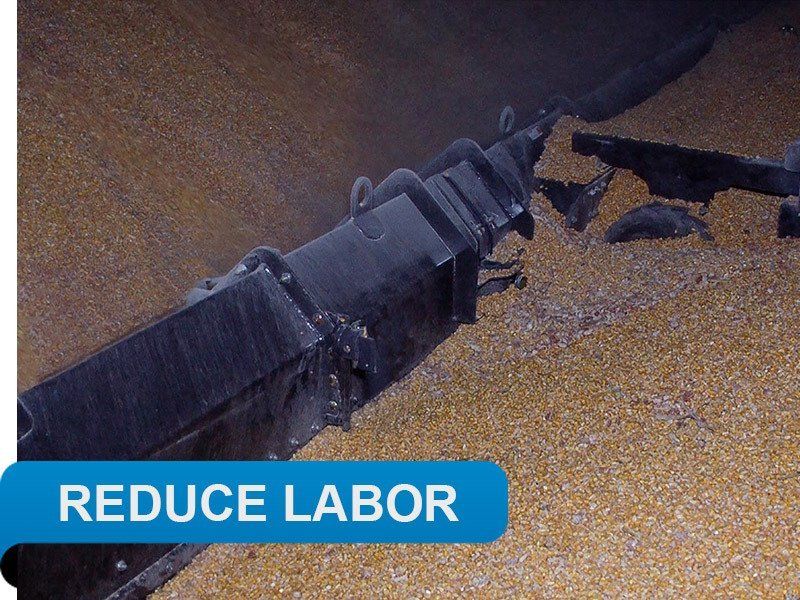

Reduce labor while unloading grain bins
  • Non jack system allows for minimal entry once started.
  • Lower input power requirement compared to other sweeps.
  • Does not plug or stall when overrunning the sweeps.
  • Foam filled 13 x 5.00-6 super lug drive tires.

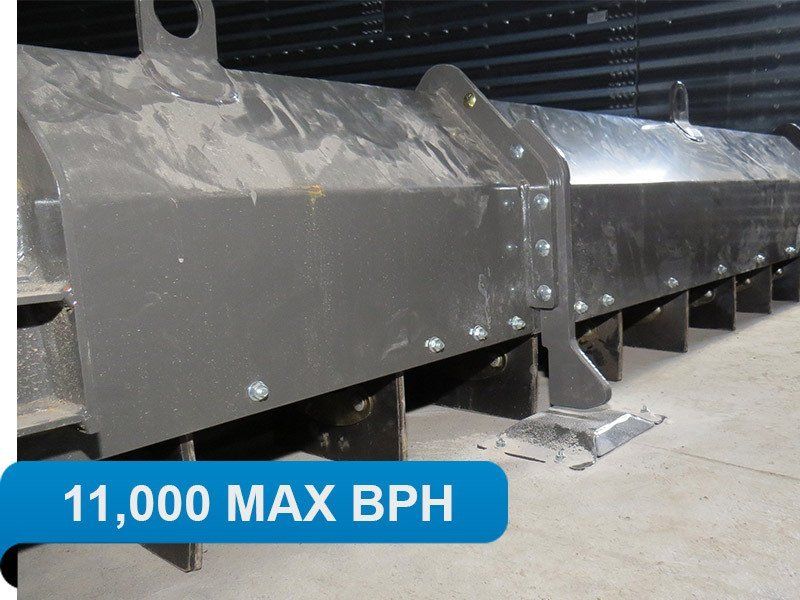

clean grain bins in less time
  • Can withstand an avalanche of grain.
  • Designed to be fully submersed in grain.
  • Housing is made out of 10 gauge material.
  • Explosion proof motors.
  • Adjustable chain and motor mounts.
MAX EAVE HEIGHT ON GRAIN BINS
We want to make sure your EXTRAC Paddle Sweep is in a bin environment that will protect it. Please contact us for additional information or if you have questions pertaining to the following specifications.
EXTRAC Paddle Sweep
Zero Entry (Corrugated Bin)
In 15' to 72' Bins, the max eave height is 150'.
In 75' Bins, the max eave height is 140'.
In 78' Bins, the max eave height is 135'.
In 90' Bins, the max eave height is 115'.
In 105' Bins, the max eave height is 106'.
EXTRAC Paddle Sweep
Zero Entry (Concrete Silo)
In 15' to 75' Silos, the burial depth is 160'.
In 78' Silo, the burial depth is 150'.
In 90' Silo, the burial depth is 125'.
In 105' Silo, the burial depth is 106'.
EXTRAC Paddle Sweep
w/Jacks (Corrugated Bin)
In 15' to 60' Bins, the max eave height is 115'.
In 66' Bins, the max eave height is 105'.
In 72' Bins, the max eave height is 95'.
In 75' and 78' Bins, the max eave height is 90'.
In 90' Bins, the max eave height is 80'.
In 105' Bins, the max eave height is 75'.
EXTRAC Paddle Sweep
w/Jacks (Concrete Silo)
In 15' to 54' Silos, the burial depth is 160'.
In 60' Silo, the burial depth is 135'.
In 66' Silo, the burial depth is 115'.
In 72' Silo, the burial depth is 105'.
In 75' Silo, the burial depth is 100'.
In 78' Silo, the burial depth is 95'.
In 90' Silo, the burial depth is 85'.
In 105' Silo, the burial depth is 75'.
